Description
These plastic replicas show the basic types of joints that are used to join different plates, shapes or pipe members. They can be partial or complete joint penetration welds.
Types of Joints Set (Out of Stock)
$350.00
Six piece set of plastic replicas showing the different types of welding joints.
**Please call (361) 643-3400 for availability.
Out of stock
Details

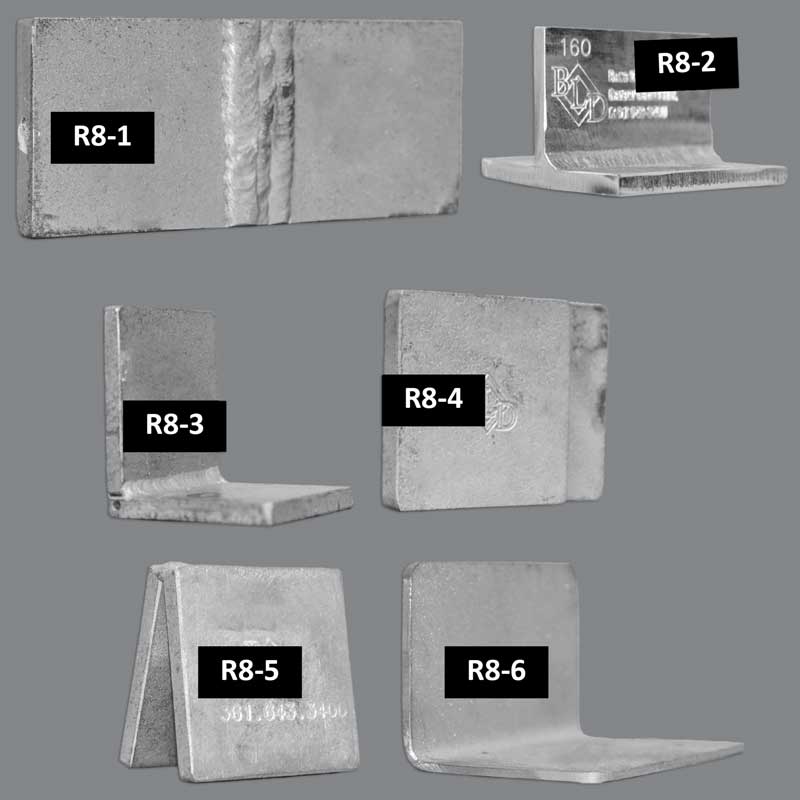

R8-1: Butt Joint – A joint between 2 members aligned approximately the same plane.
R8-2: T-Joint – a joint between 2 members located approximately at right angles to each other in the form of a T. **Welded on one side only.
R8-3: Corner Joint – a joint between 2 members located in approximate right angles to each other in the form of an L.
R8-4: Lap Joint – a joint between 2 overlapping members in parallel planes.
R8-5: Edge Joint – a joint between the edges of 2 or more parallel or nearly parallel members (0° to 30°)
R8-6: Flanged Joint – a light weight piece of sheet metal bent to approximately 90° by a brake which leaves the corner radiused. Used to give stiffness to the member.
